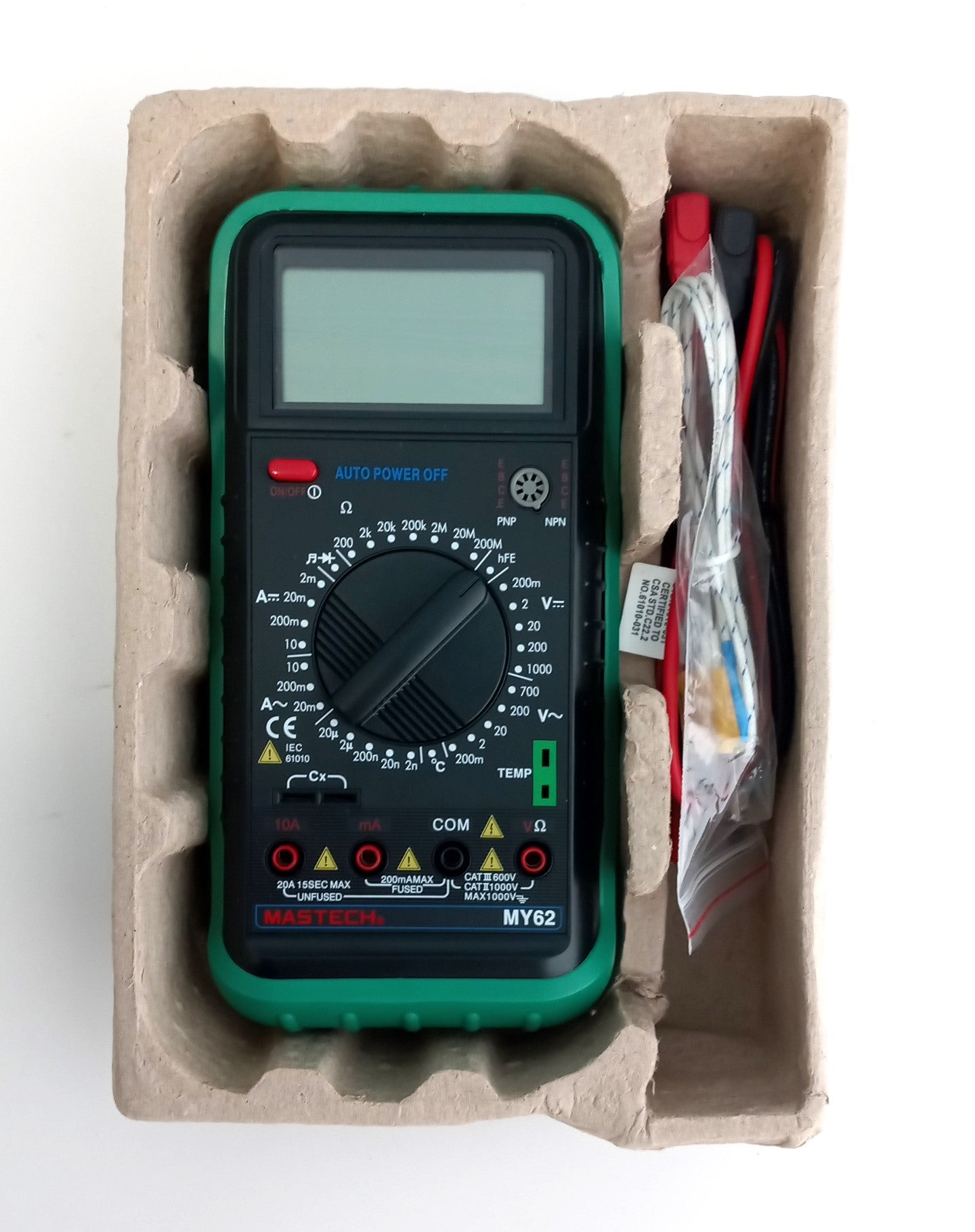

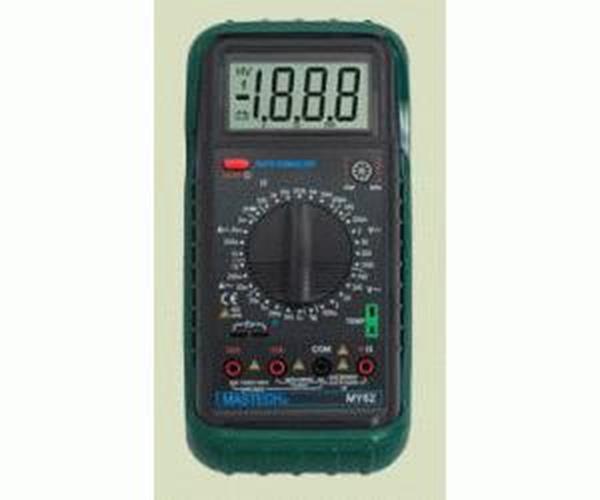

Mastech MY62 Digital Multimeter

Mastech  MY62 Digital Multimeter

• Large LCD Display: 30mm x 60mm
• 32 Ranges
• DC voltage: 200m/2/20/200V±0.5%, 1000V±0.8%
• AC voltage: 200mV±1.2%, 2/20/200V±0.8%, 700V±1.2%
• DC current: 2m/20mA±0.8%, 200mA±1.5%, 10A±2.0%
• AC current: 2m/20mA±1.0%, 200mA±1.8%, 10A±3.0%
• Resistance: 200/2k/20k/200k/2MΩ±0.8%, 20MΩ±1.0%, 200MΩ±5.0%
• Capacitance: 2n/20n/200n/2µ/20µF±4.0%
• Temperature: -20°C ~ 1000°C
• Continuity check with buzzer
• Diode check: Test current 1.0mA, test voltage 2.8V
• hFE: 1 ~ 1000
• Auto power off
