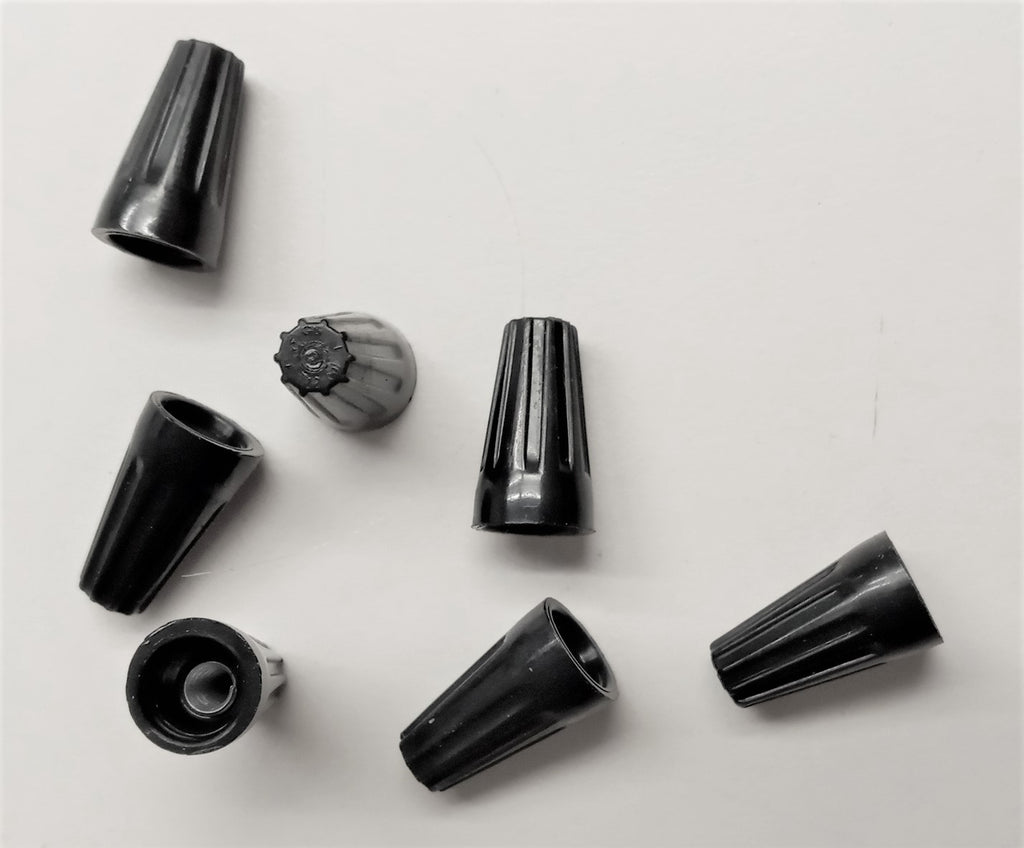

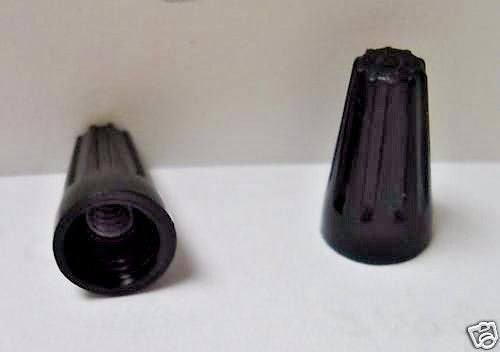

Gardner Bender GB-1 Hi Temperature Wire Connectors 100 Pieces
Ribbed cap provides a secure grip and faster fingertip starts when hands are slippery
-BLACK THERMOPLASTIC SHELL SPECIALLY DESIGNED TO WITHSTAND THE EXTREME HEAT BUILD-UP COMMONLY FOUND IN HIGH WATTAGE FIXTURES AND SIGNS
-TEMPERATURE RATED AT 302 F MAXIMUM
-NO PRE-TWISTING OF CONDUCTORS REQUIRED
-UL LISTED
WIRE CONFIGURATION
2 #16 2/3 #18 2-4 #20 3-5 #22
1 # 16+1 #18/20 1 #16+1 #20+1 #22 1 #16+1-3 #22
1 #18+1-3 #20 1 #18+1 #20+1 #22 1 #18+1-4 #22
2#18+1 #20 2#18+1/2 #22
1#20+2-4 #22 2#20+1-3 #22 3#20+1/2 #22
