Campbell 715-0106 Nut Eye Bolt 3/8" X 4-1/2" Galvanized Steel 1250lb USA 2pcs.

Campbell 715-0106 Nut Eye Bolt 3/8" X 4-1/2" Galvanized Steel 1250lb USA 2pcs.

price: Regular price $12.00 Sale price $12.00
part #:
quantity:

product description

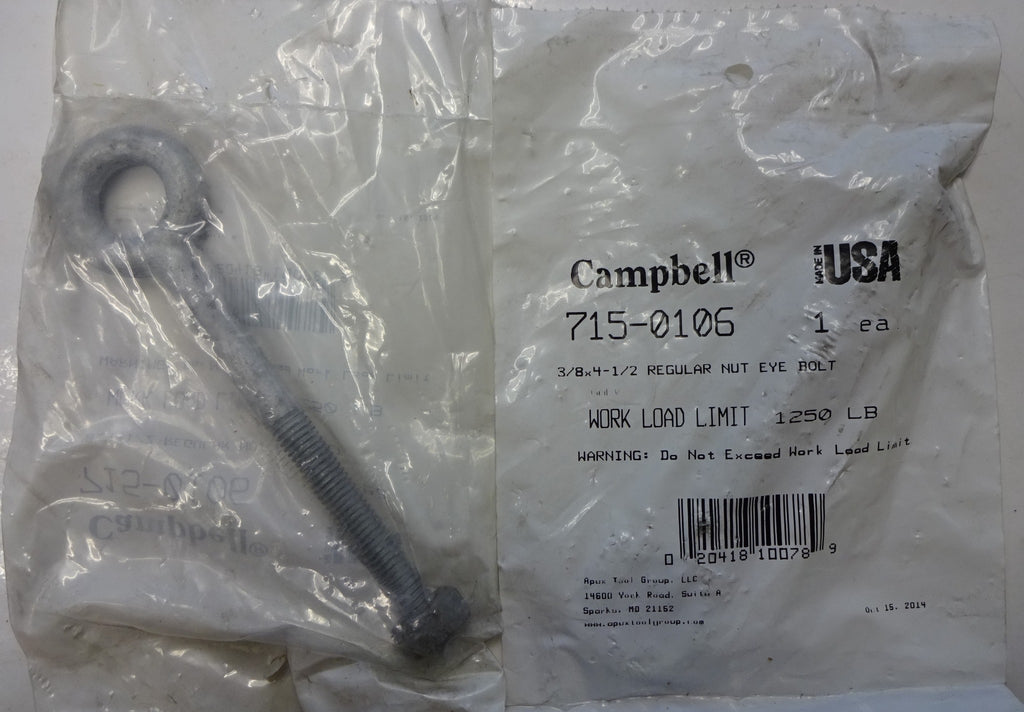

CAMPBELL 715-0106 NUT EYE BOLT 3/8" X 4-1/2" GALVANIZED STEEL 1250LB USA 2PCS.

CAMPBELL® EYE BOLT, REGULAR NUT, MEASUREMENT SYSTEM: IMPERIAL, 3/8 IN THREAD, 4-1/2 IN SHANK LENGTH, DROP FORGED CARBON STEEL,

GALVANIZED FINISH, 3/4 IN ID EYE, 1-1/2 IN OD EYE, 1250 LB WORKING LOAD, 2-1/2 IN THREAD LENGTH, 436-G GRADE, ASTM A153 MATERIAL SPECIFICATIONS

  • WORKING LOAD LIMITS APPLY ONLY TO EYEBOLTS IN LIFTING OR PULLING APPLICATIONS
  • REGULAR NUT EYEBLOTS ARE NOT TO BE USED FOR ANGULAR LIFTING
  • MAKE SURE THE EYEBOLT IS PROPERLY SEATED BY SCREWING IT DOWN COMPLETELY AND TIGHTENING THE NUT SECURELY AGAINST THE LOAD
  • EYEBOLTS MUST BE INSTALLED INTO A TAPPED HOLE WITH A MINIMUM DEPTH OF 2X THE SHANK DIAMETER
  • MAKE SURE THE THREADS ON THE SHANK AND IN THE HOLE ARE CLEAN AND UNDAMAGED
  • ALWAYS LIFT THE LOAD WITH A STEADY, EVEN PULL
  • DO NOT SHOCK LOAD
  • LOADS MUST BE APPLIED PARALLEL TO THE PLANE OF THE EYE AND NEVER ACROSS THE PLANE OF THE EYE
  • DO NOT EXCEED THE WORKING LOAD LIMIT
