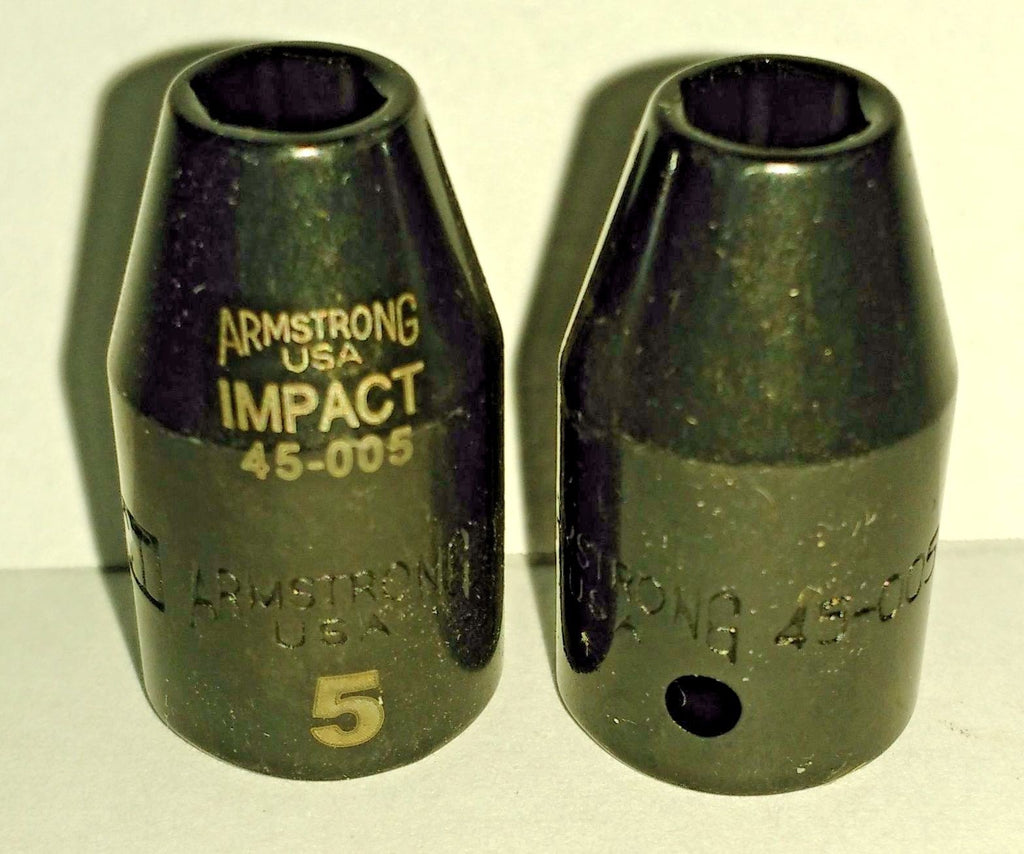

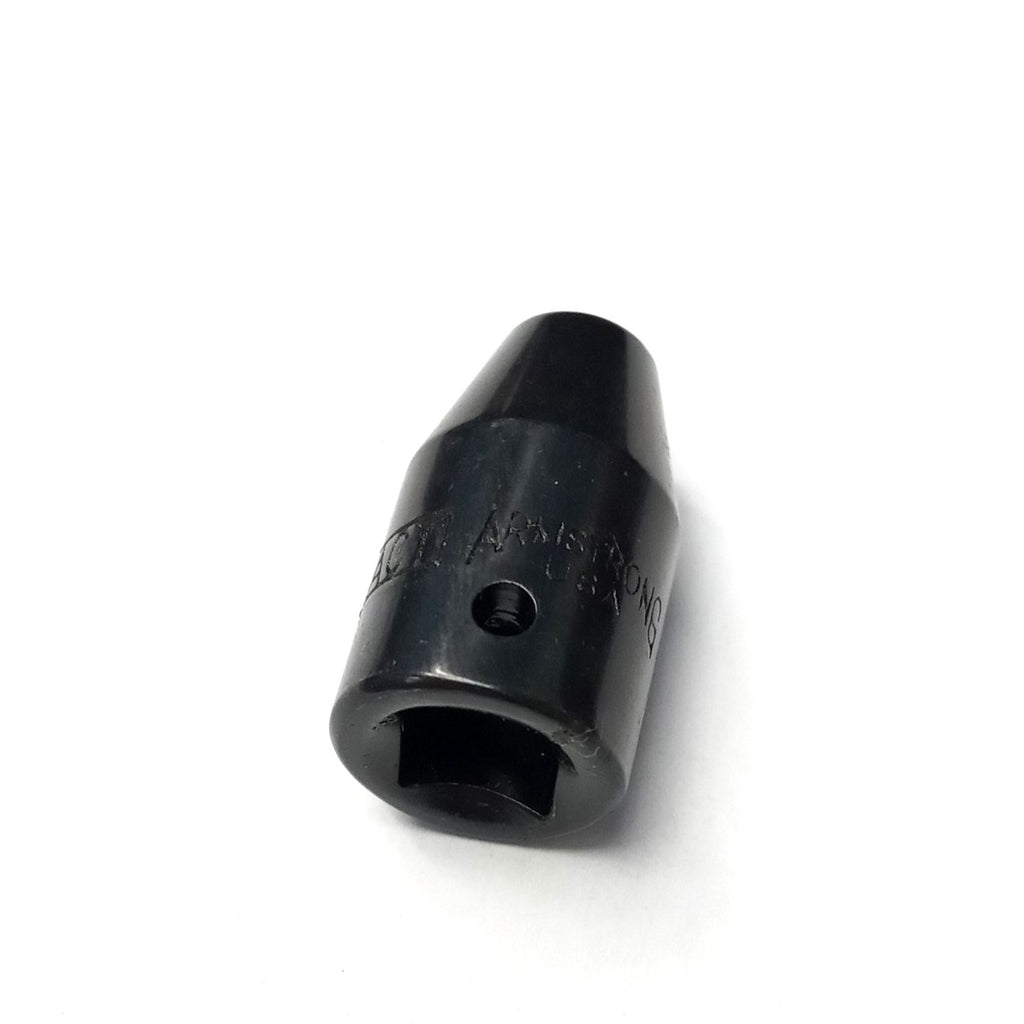

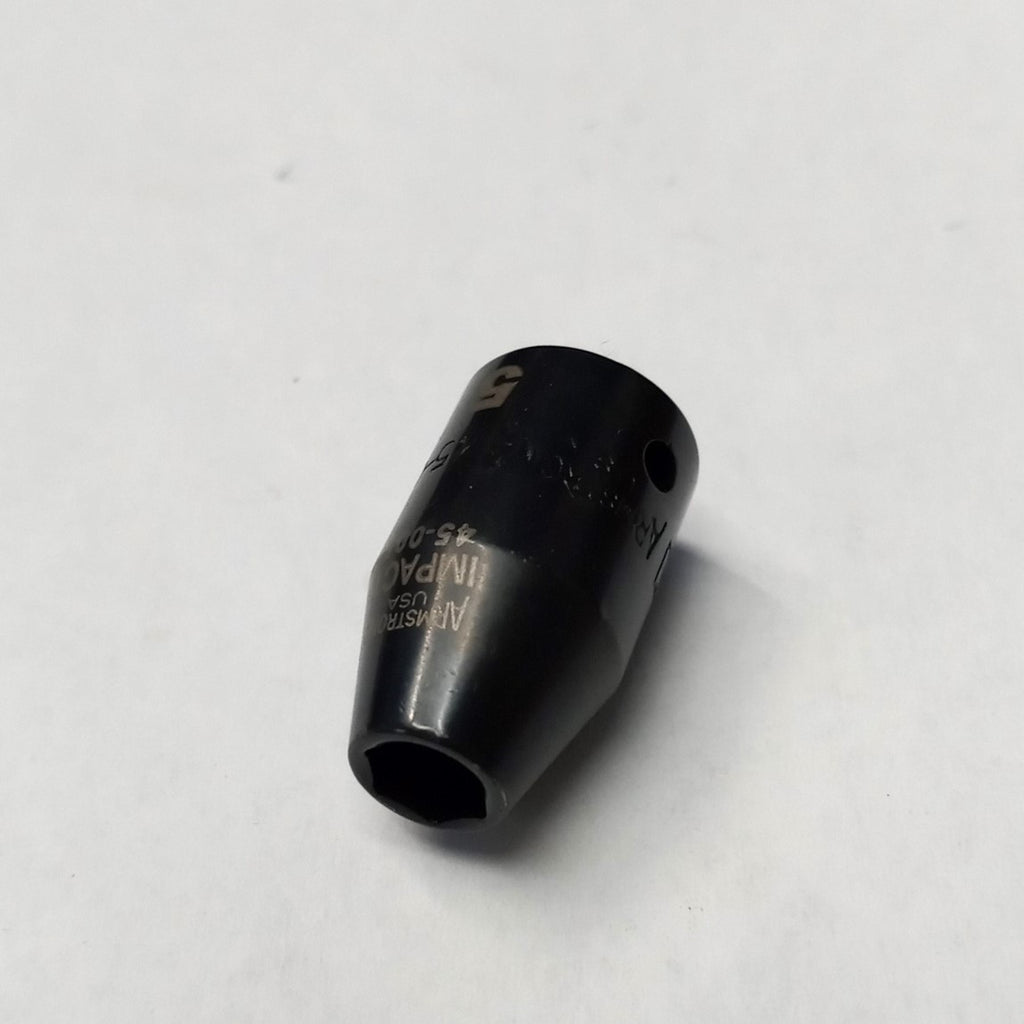

1/4" Drive 6 Point Impact Socket 5mm
- Made in the USA - Quality and Availability
- Radius Corner Design Engages the Flats of the Fastener, Not the Corners, Providing Up to 15%-20% More Torque While Reducing Fastener Rounding, Enhancing the Turning of Worn Fasteners
- EYE-D™ Markings Optimize Size Visibility, Also Providing SAE / Metric Differentiation
- Socket Wall Dimensions Are Optimized to Provide Strength While Retaining Access to Restricted Fasteners
- Manufactured From High Alloy Steel Using the Most Up-To-Date Manufacturing Process and Heat Treat for Greater Strength and Durability
- Meets or Exceeds ASME B107.33M-2002
| Made in USA |
Yes |
| Foreign Trade Code |
8204200000 |
| Fastener Size |
5 mm |
| UPC |
781412450057 |
| Set |
No |
| ASME Specification |
B107.33M-2002 |
| SAE/Metric/Torx |
Metric |
| Drive Type |
6 Point |
| Drive Tang Size |
1/4 in |
| Length Format |
Standard |
| Dim. A: Drive End |
0.500 in |
| Dim. C: Overall Length |
0.846 in |
| Dim. D: Bolt Clearance |
0.189 in |
| Dim. E: Wrench Depth |
0.299 in |
| Dim. B: Wrench End |
0.311 in |
| Dim. F: Length to Shoulder |
0.295 in |
