Radius corner design engages the flats of the fastener, not the corners, providing up to 15% -20% more torque while reducing
Eye-D™ markings optimize size visibility, also providing SAE/metric differentiation
Socket wall dimensions are optimized to provide strength while retaining access to restricted fasteners
Manufactured from high alloy steel using the most up-to-date manufacturing process and heat treat for greater strength and durability
Measurement System : Imperial
Drive End Width : 1.948 in
Drive Size : 3/4 in
Drive Type : Square
Locking Type : Ball
Material : High Alloy Steel
Type : Standard Length
Overall Length : 3.17 in
Socket End Width : 3.03 in
Socket Size : 2-1/4 in
Socket Type : 12 Point
Bolt Clearance Depth : 2-1/4 in
Finish : Chrome Plated
Opening Depth : 1.7 in

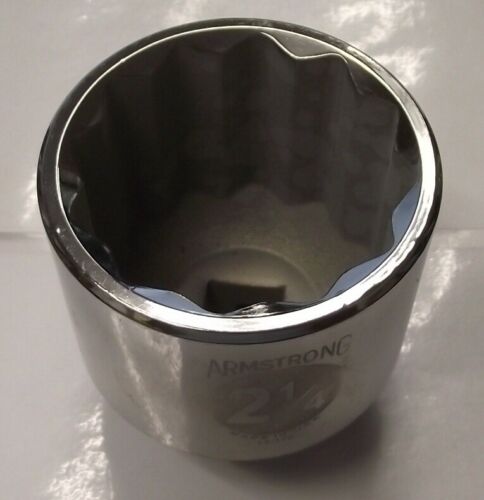

Armstrong® Drive Socket, Standard Length, Measurement System Imperial, 3/4 in Drive, Square Drive, 12 Point Socket, 2-1/4 in Socket, 3.17 in Overall Length, 1.948 in Drive End Width, 3.03 in Socket End Width, 2-1/4 in Bolt Clearance Depth, 1.7 in Opening Depth, Ball Locking, High Alloy Steel, Chrome Plated
